Most cheap Chinese aero frames ask you to take their speed claims on faith. The XMCS Vortex doesn’t. It’s been through the Silverstone wind tunnel, the numbers are public, and they’re good enough to put it in the same sentence as a Cervélo S5. At around $1,650 for the frameset, that’s the part that made me stop scrolling.
I haven’t ridden one, so treat this as a research-based overview rather than a review. What I want to work out here is whether the fast numbers survive contact with real-world fit, weight, and the fact that this is a young frame from a small Chinese brand.
What Is XMCX and VRT?
XMCS stands for XM Carbon Speed, a small operation that develops and manufactures wheels, but it recently also launched the Vortex road frame. The Vortex started life as the AERYS:VRT and was renamed to VRT after a trademark headache, so if you see both names floating around, they’re the same frame.
It’s a one-piece monocoque built from a mix of Toray T1000, 40T, and 30T carbon fiber, plus SCM material made by Mitsubishi. It runs a threaded T47-85.5 bottom bracket, it’s UDH-compatible, and has a 35mm tire clearance. The system weight limit is 115kg, and the warranty is five years, which is generous for this corner of the market.
The Aero Case
This is the reason to care. XMCS had the Vortex tested at Silverstone and published the graphs, and the comparisons are run as complete packages, frame plus wheels, against a Quick Pro ER:One and a Cervélo S5.

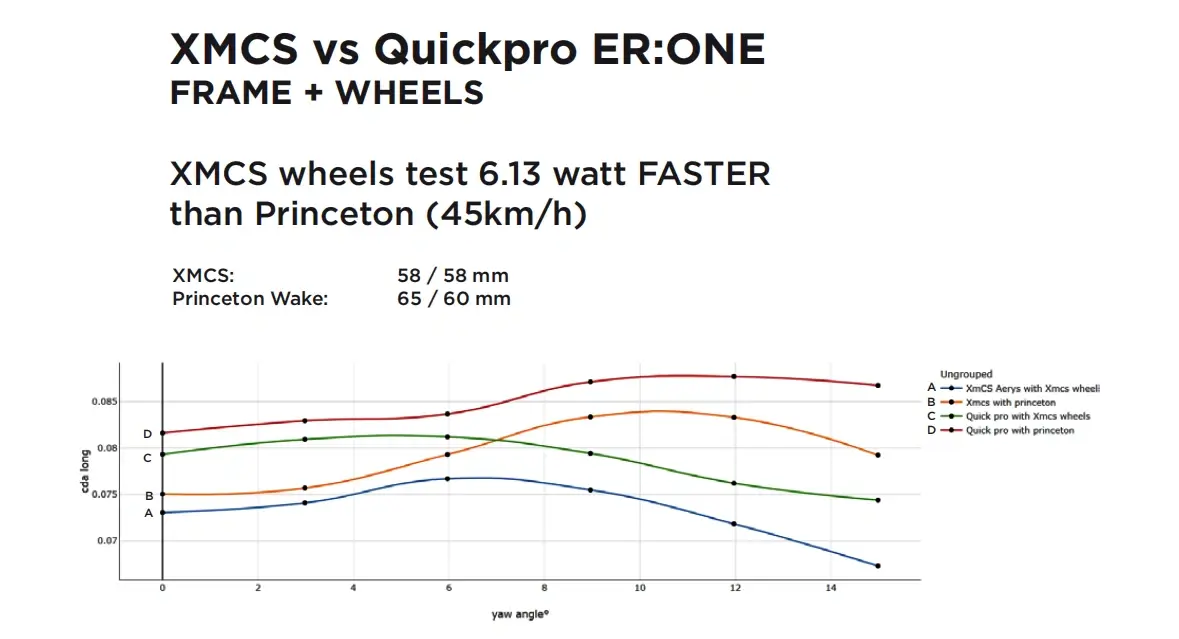

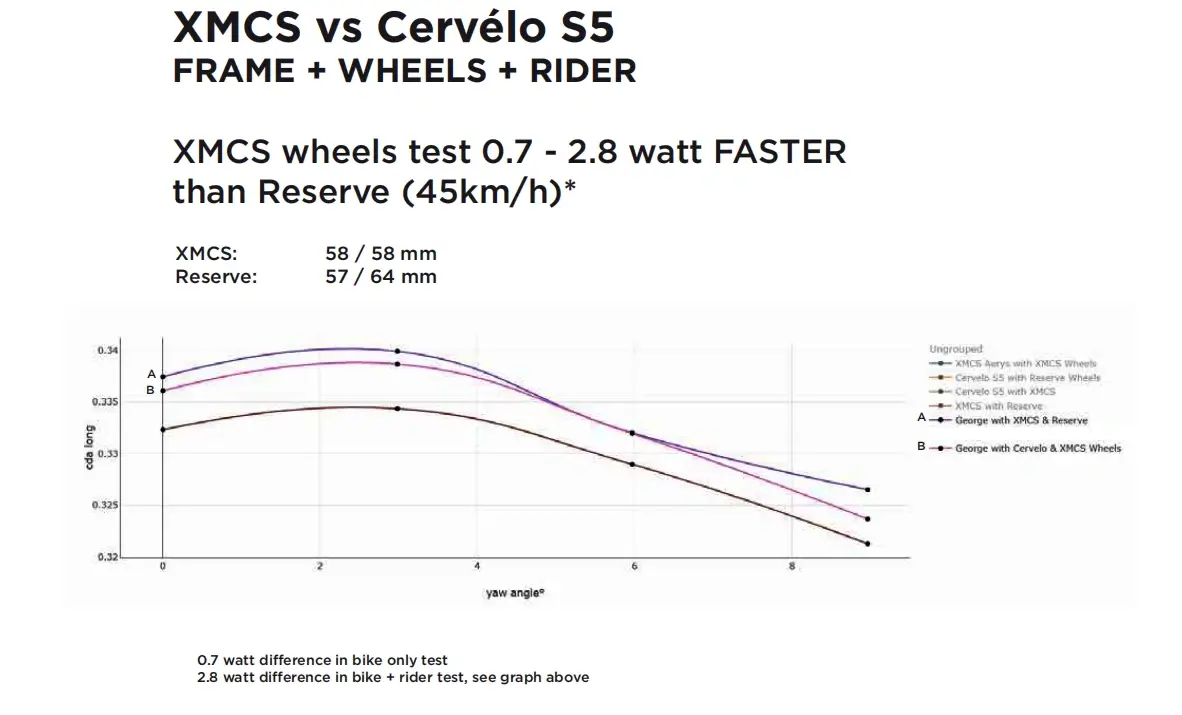

Two numbers stand out. Against the Quick Pro setup, XMCS says its own 58/58mm wheels test 6.13 watts faster than Princeton Wake 65/60s at 45 km/h. Compared to the S5 package, the margin is much tighter: 0.7 watts in the bike-only run and 2.8 watts with a rider.
Read those carefully, because they are wheel-to-wheel comparisons inside a whole-bike test, not a clean frame-against-frame result. The data show that the complete XMCS package holds its own against a benchmark superbike. What it doesn’t isolate is how much of that comes from the frame itself.
Even with that caveat, this is more than most brands at this price offer. A sub-$2,000 Chinese frame went to a real wind tunnel and published the charts instead of a marketing slide. That’s rare, and it deserves credit.
What Other People Have Found
Two outside takes are worth knowing about before you get carried away with the graphs.
The Nero Show podcast picked up the Silverstone results and gave XMCS credit for actually paying for tunnel time and publishing the raw data, which most brands at this price never do. They also spotted the catch. The runs were done without bottles. The S5 was designed around a round bottle in the frame, and a bottle costs a narrow-tubed frame like the Vortex more than it costs a bike built to hide one. So the “faster than a Cervélo” headline gets murkier the moment you do something as exotic as drink water.
Patrick Lino has since put around 1,000 miles into one, which is the part I care about most. His size 56 came out at 7.4kg with pedals, cages, and a heavy power meter, and he rates it fast in a straight line and a genuine rival to the Quick Pro ER:One on the road. His two complaints line up with everything else here. It gets unsettled in crosswinds thanks to that head tube, and the steep seat tube plus the stock setback makes a traditional rearward saddle position close to impossible.
About That Weight
Here I’d temper expectations. XMCS quotes unpainted frame weights of 885g in size M and 925g in size L, both including hangers and bolts, plus 445g for the fork. Those are reasonable aero numbers on paper.
Real-world weigh-ins land higher, as they usually do. One forum member measured a size L at 994g with bolts and axles fitted, and paint adds more on top. If you’re buying it to save grams, plan around the number your kitchen scale gives you, not the one on the product page.
Where It Gets Complicated
A few things would stop me clicking buy without thinking first.
Fit is the big one. The seat tube angle is a steep 74 degrees in the middle sizes, and XMCS currently offers only a zero-offset or a 15mm-setback seatpost, with a longer setback option still to come. If you like your saddle set well back, this frame will quietly fight you the whole time, and that’s the single most common complaint from early owners.
Crosswinds are the second. The deep head tube that helps the aero numbers also gives the wind a big lever, and testers report it gets skittish above roughly 40 km/h in gusts. That’s the usual tax on a deep front end that I also experienced on the Winspace M6. Fast on paper, busy in your hands on a gusty descent.
It isn’t UCI approved yet. XMCS says it’s arranging certification before August 2026, so if you race under UCI rules, wait until that’s confirmed.
Tire clearance is pretty ok. Maximum is 700x35C. Many frames are still stuck in the 32mm range, and those below that are not even worth mentioning.
Price and What You Get
At $1,650 on sale for the frameset, with the headset, thru-axles, and a five-year warranty included, the Vortex is priced right for what it delivers. You’re getting genuine, tunnel-validated aero performance for well under half the cost of the Western frame it lines up against. Paint options range from raw UD carbon to a three-color finish, and it comes in six sizes, from XS to XXL.
My Take
Of the cheap aero frames I’ve looked at lately, this is the one I’d actually keep an eye on. Not because the marketing is loud; it isn’t. But because the brand puts its data where you can actually check it, and the data holds up. It’s clear that XMCS listened to its potential customers and what they want.
If you want a fast, affordable aero frame, you’re comfortable in a forward, aggressive position, and you don’t need UCI approval, the Vortex is worth considering. If you need setback in your fit, you ride windy roads, or you want the proven long-term reliability of an established name, it isn’t the safe bet yet. It’s a young frame from a small brand, and its track record is still being written.
In the meantime, you can also check out these Chinese road frames and join my Facebook group where we discuss everything Chinese carbon.

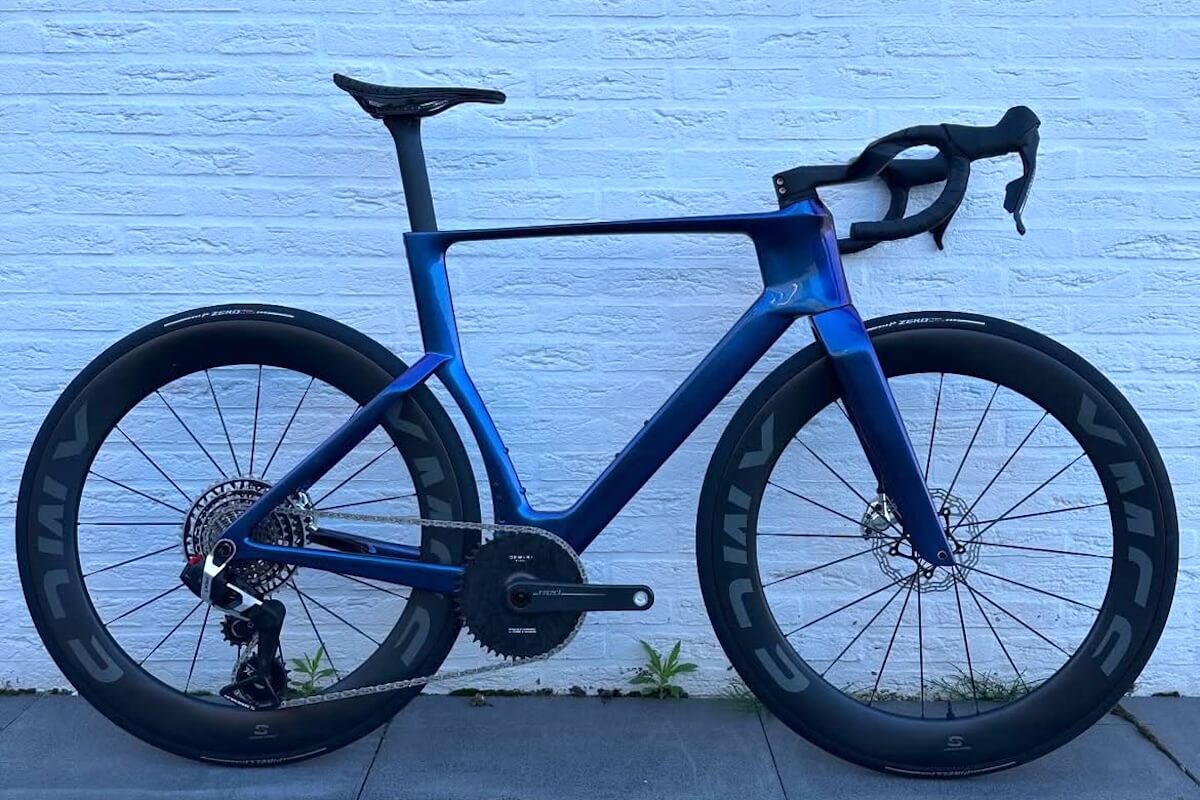

Preview picture source: XMCS Belgium
